Using a custom total calculation


1. Overview

In some cases, it is useful to customize the total displayed for a measure. For instance, when calculating the percentage that a measure value makes up of the total of several measures, the sum or the average of all the calculated values in the rows may not be as helpful as the calculating the percentage again based on the measures' overall totals.

Group A B A / (A+ B)
Apple 1 7 12.50%
Apple 2 11 15.38%
Apple 3 13 18.75%
Apple 5 17 22.73%
Apple 7 19 26.92%
Apple 11 23 32.35%
Total: 29 90 X SUM 128.64%
Banana 13 29 30.95% AVG 21.44%
Banana 17 31 35.42% Calc. 24.37%
Banana 19 37 33.93%
Banana 23 39 37.10%
Banana 29 41 41.43%
Banana 31 43 41.89%
Total: 132 220 X SUM 220.71%
        AVG 36.79%
        Calc. 37.50%

Totals calculation rules allow you to customize how the totals are calculated.

2. Creating a custom total formula

This example will add the formula A /(A+B) as the total calculation.

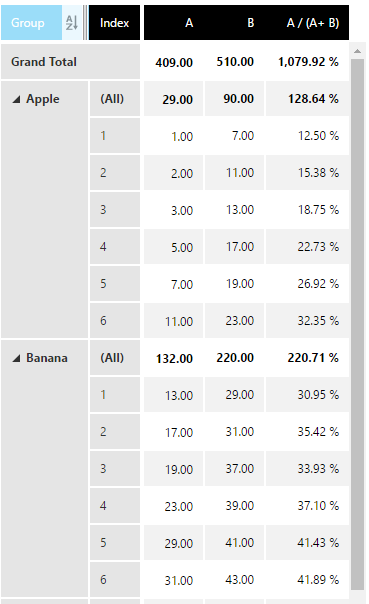

Table with data and totals calculated using an aggregator
Table with data and totals calculated using an aggregator

To create a totals calculation rule, click on the measure in the Data Analysis Panel to open its measure configuration dialog, click to expand Totals Calculation Rules for either rows or columns, then click Define totals calculation rule formula.

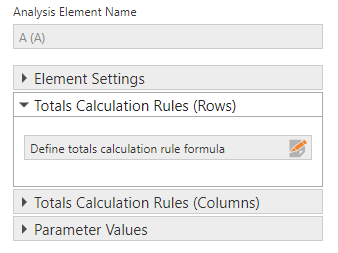

Enabling custom total calculation
Enabling custom total calculation

The formula bar will appear.

Custom total formula bar
Custom total formula bar

Formulas are entered in a similar way as for a regular formula measure: you can use formula functions such as SUM, and measure placeholders such as $A$ for our measure A.

You can click a measure in your visualization to insert its placeholder into the formula bar.

There are multiple ways you can determine your totals:

  • You can pass measures as arguments to functions such as AVG or SUM to determine how the individual values should be totaled. In the example above, the measures A and B both aggregate using Sum, and we will want to use the corresponding SUM function for each measure in order to calculate the overall percentage in this case. You are free to choose functions that don't correspond with the measure's aggregator if needed for your purposes.

    Using functions in a custom total formula
    Using functions in a custom total formula

  • Or, you can instead refer to measures directly without calling a function, to use their original totals as determined by their aggregator. When you do this, you have the option of customizing the aggregator used just for this total by clicking on the underlined measure placeholder to open the Placeholder dialog, then setting Aggregator.

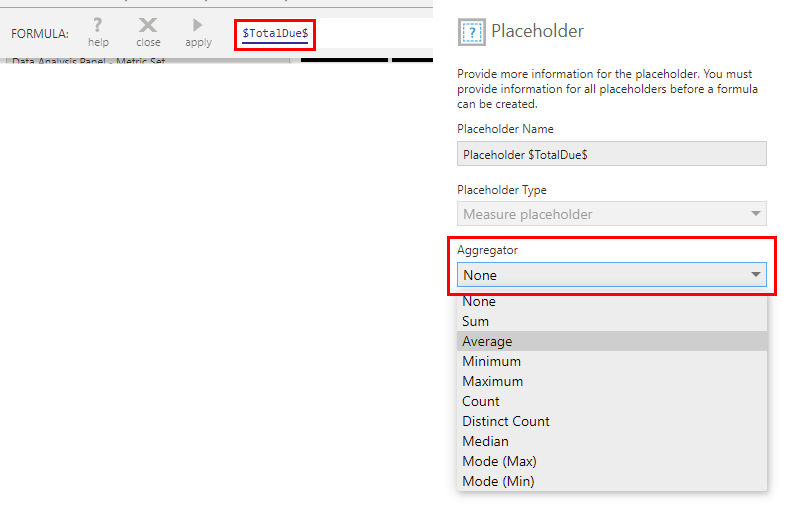

    Changing a measure's aggregator in a custom total formula
    Changing a measure's aggregator in a custom total formula

Use measure placeholders without calling functions or customizing the aggregator for optimizations such as avoiding the retrieving of collapsed data from the data source.

Once you complete the formula, click apply to return to the measure configuration dialog. You can then submit the dialog when finished.

Enabling Custom total calculation
Enabling Custom total calculation

3. Other options

There are options available that can influence how the custom total formula is used.

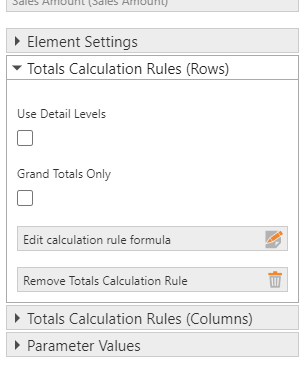

Custom total options
Custom total options

Use Detail Levels – If checked, grand totals use the set of data created from the details level, i.e., the lowest-selected level of the last hierarchy selected. If unchecked, grand totals are calculated using the set of values created from the subtotals.

Grand Totals Only – only applies the formula to the grand total at the beginning or end, and not the subtotals displayed when there are multiple hierarchies selected under Rows or Columns in the metric set.
