Configuration settings

1. Overview

You can view and modify configuration settings in Dundas BI through the administration web interface.

Tip
For the full list of all configuration settings, view them within Dundas BI where you can filter and search through them.

2. View or modify configuration settings

To view or modify configuration settings in Dundas BI, go to the Administration area.

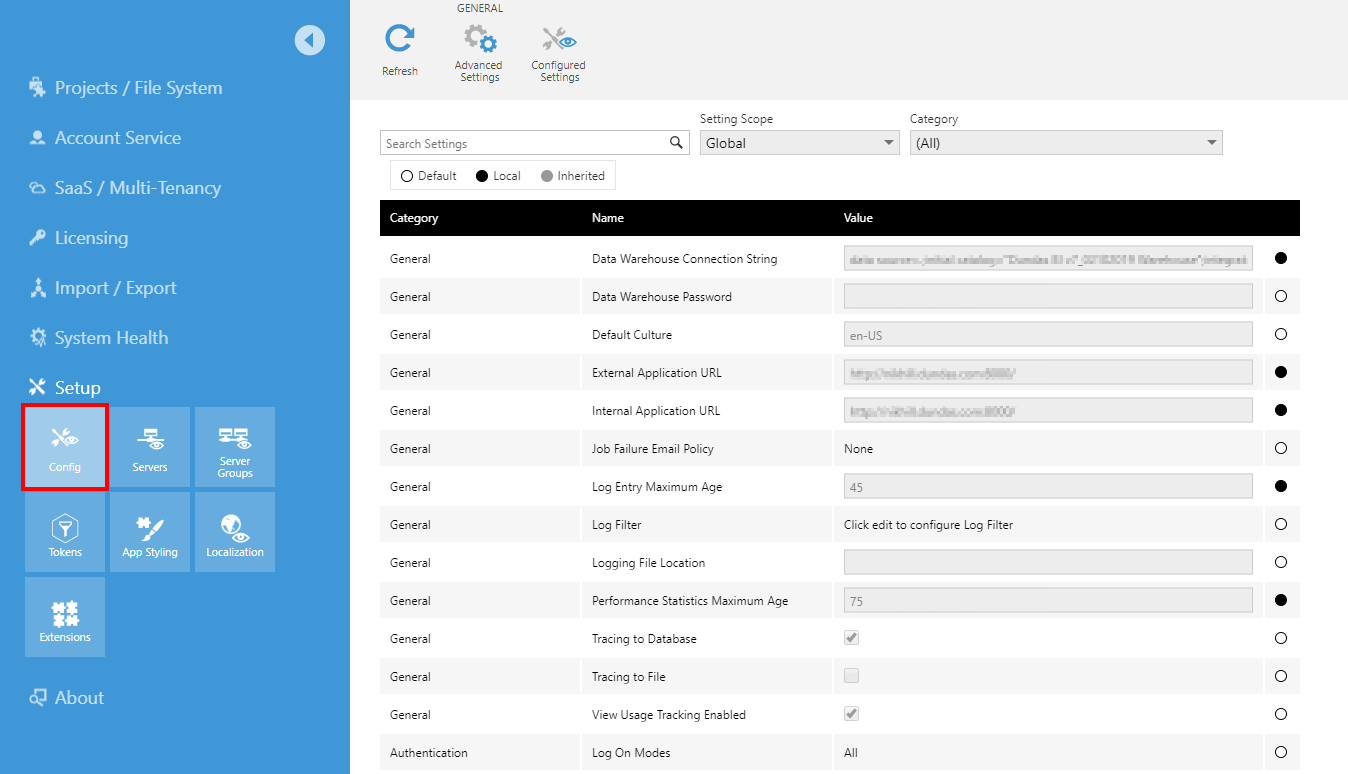

Expand the Setup section along the left and click Config. The configuration settings are displayed in a table.

Click Config
Click Config

2.1. Advanced settings

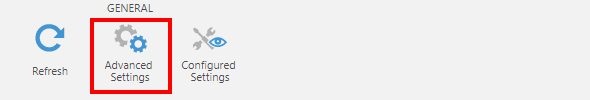

By default, advanced settings (such as App DB Query Timeout) are hidden. To see the complete list of settings, click the Advanced Settings icon on the toolbar. Advanced settings are displayed in italics.

Show advanced settings
Show advanced settings

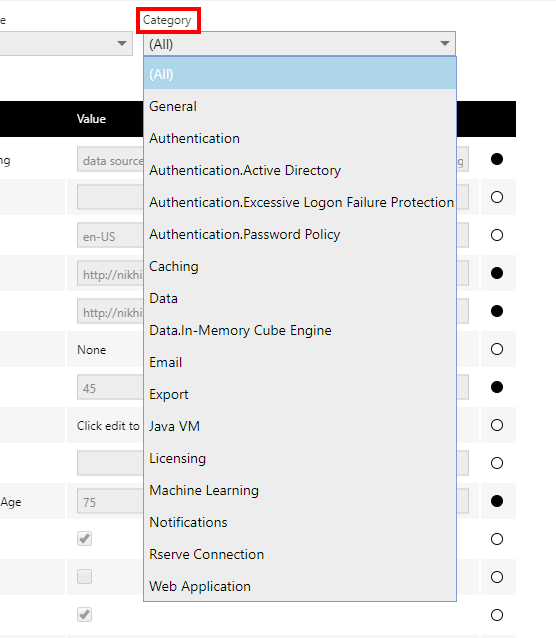

2.2. Filter by category or search for settings

Use the Search box or the Category dropdown to easily find the setting(s) you need.

For example, if you want to see only email-related settings, set the Category dropdown to Email. The table of settings will be filtered accordingly.

Filter settings by category or search for settings
Filter settings by category or search for settings

To filter the list to include only settings that have been previously set or changed, click Configured Settings in the toolbar next to the advanced option.

2.3. Setting scope

For scalability, Dundas BI supports using multiple servers (i.e., a server farm) for handling application and data processing.

When your installed Dundas BI instance has server groups set up, you can override each configuration setting on different levels such as globally, across a server group, or per-server. The override system works as follows:

  • A configuration setting may have a built-in default value.
  • A Global value for a configuration setting will override the corresponding default value.
  • A Server group value for a configuration setting will override the corresponding global value.
  • A Server value for a configuration setting will override the corresponding server group value.

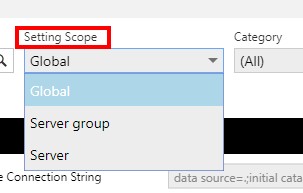

Use the Setting Scope dropdown if applicable to view or modify the configuration setting values at the Global, Server Group, or Server levels.

If you don't provide a setting value at a certain level, it will just inherit the setting value from the next priority level. For example, if you're at the Global scope and you don't specify the value for the Default Culture setting, it will inherit the default value of en-US.

Setting scope
Setting scope

Tip
When you don't have multiple servers, you can just use the Global setting scope.

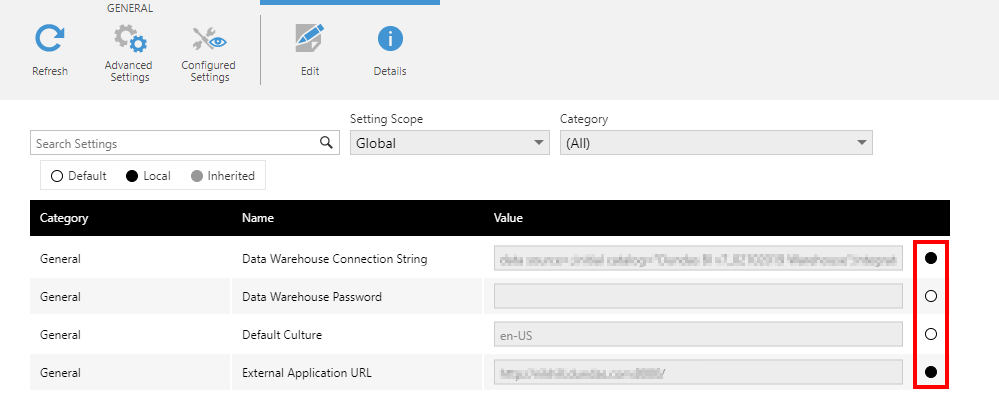

2.4. Source for a configuration setting

Beside each configuration setting is a symbol that helps you quickly identify which settings have been customized:

  • Default (empty) - The setting value is the default, built-in value.
  • Local (filled) - The setting value is set directly in the current setting scope.
  • Inherited (shaded) - The setting value is inherited from another scope (where applicable).

Source for a configuration setting
Source for a configuration setting

2.5. View the details for a configuration setting

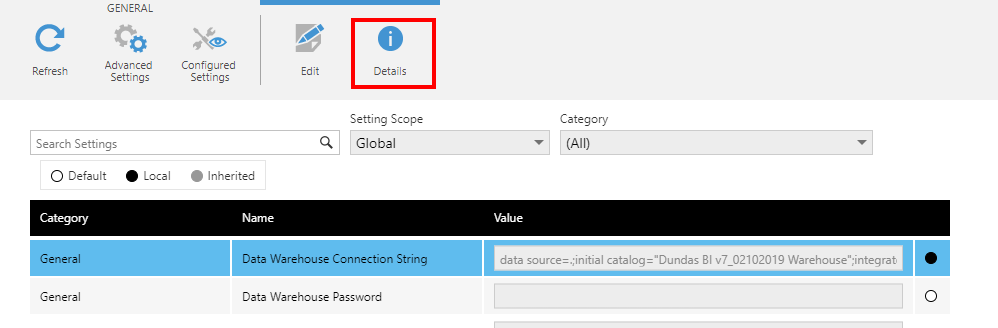

Select a configuration setting and then click the Details icon on the toolbar.

Click the Details icon
Click the Details icon

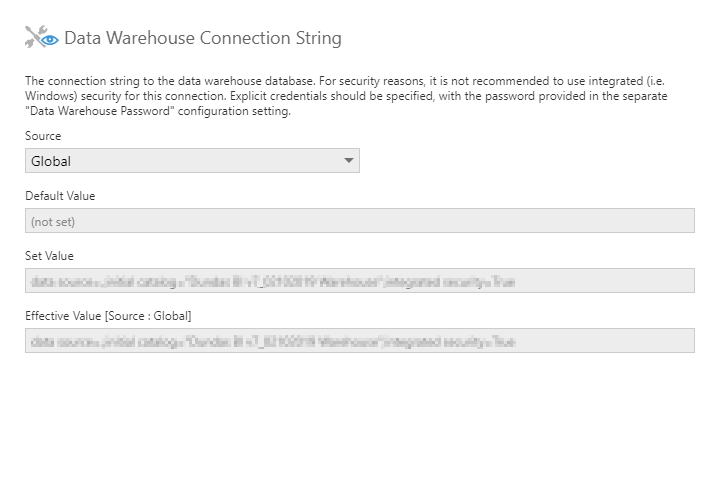

The following details are displayed for that setting:

  • A description of the setting.
  • The default value of the setting (if any).
  • Whether the setting is set in the current scope or not, and its value if it is set.
  • The effective value of the setting and its source.

View the details for a configuration setting
View the details for a configuration setting

2.6. Modify a configuration setting

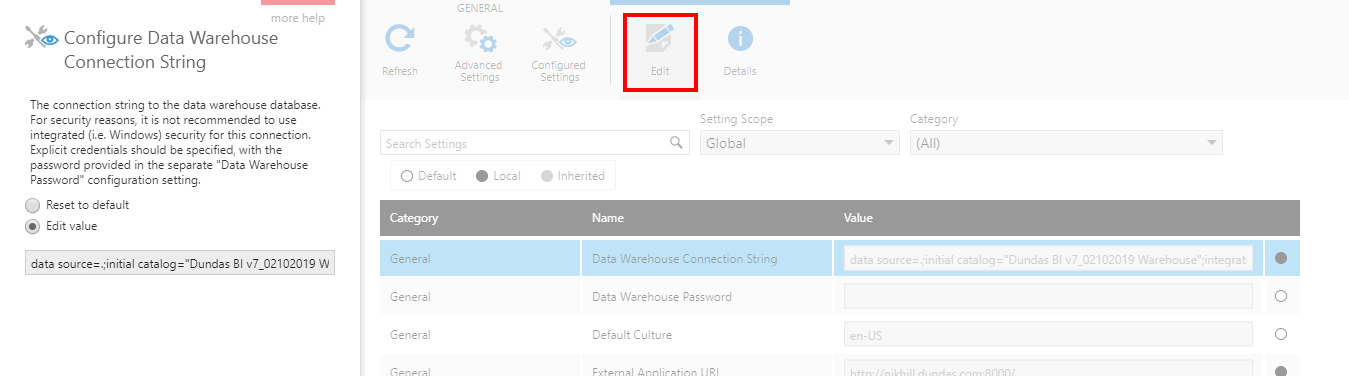

To edit/modify a configuration setting, make sure you are in the proper setting scope if applicable, select the setting and then click the Edit icon on the toolbar.

A dialog appears on the left, allowing you to set a value or reset it back to default. The actual options in the dialog will be different depending on the configuration setting.

Modify a configuration setting
Modify a configuration setting

3. Example settings

3.1. Automatic Windows Log On

Automatic Windows Log On is one available method of Single Sign On (SSO) when logging on with Windows credentials. By default, this setting is turned off in the Dundas BI configuration settings.

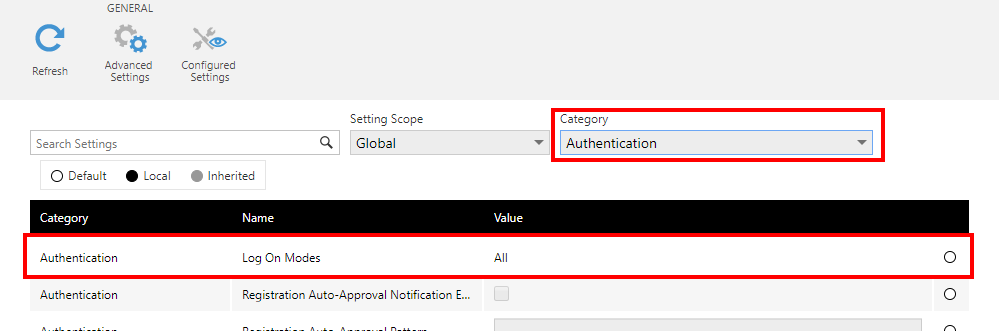

Before enabling this option, first ensure that the Log On Modes configuration setting is set to All or Windows.

Check the Log On Modes setting
Check the Log On Modes setting

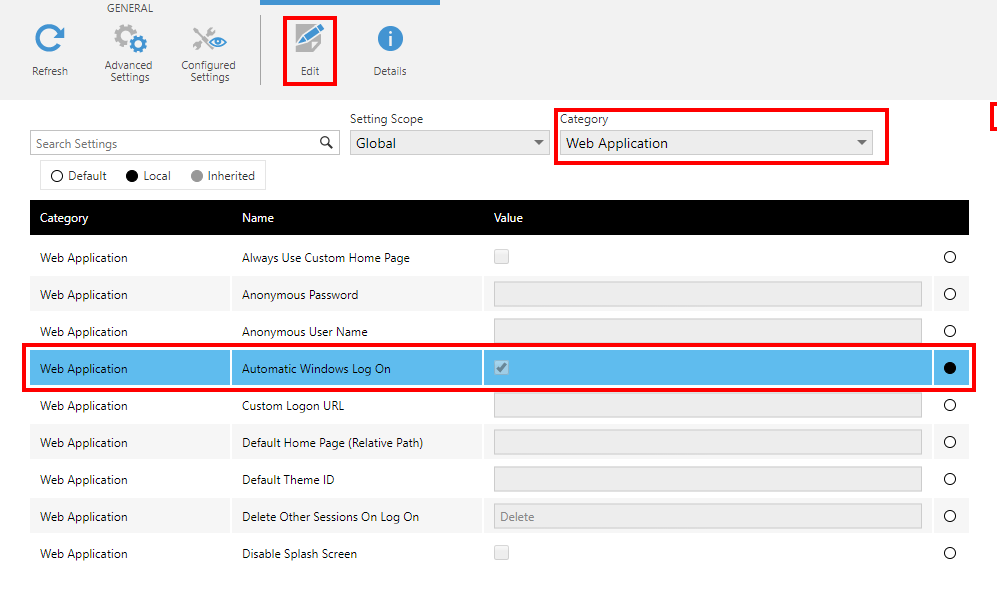

Then enable the Automatic Windows Log On configuration setting.

Enable Automatic Windows Log On
Enable Automatic Windows Log On

Note that Windows authentication must be enabled in IIS as well. For more details, see this Microsoft article: Configure Windows Authentication (IIS 7).

Once enabled, automatic logon will occur for all URLs that do not require explicit authentication. For example, navigating to http://yourinstance/ will take you directly to the home screen, whereas http://yourinstance/LogOn/ will still show the Log On screen.

3.2. Multiple Domain Support

This setting enables Dundas BI to work with multiple Active Directory domains. Activating the Multiple Domain Support setting lets you set up cross domain authentication by adding Windows accounts and Windows groups from another domain.

Note
Built-in Local Groups are not available for Windows Group accounts, regardless of the domain being used.

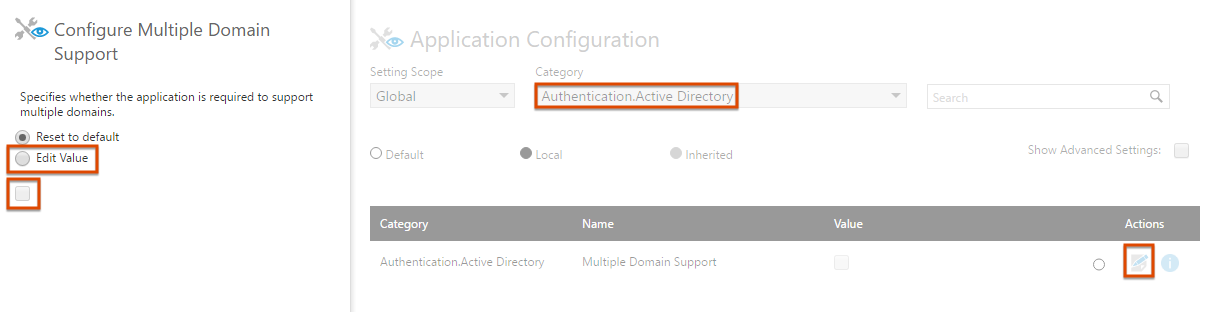

Under Category, select Authentication.Active Directory, select the Multiple Domain Support setting and then click Edit on the toolbar. On the edit settings dialog click Edit Value and select the checkbox.

Multiple Domain Support setting
Multiple Domain Support setting

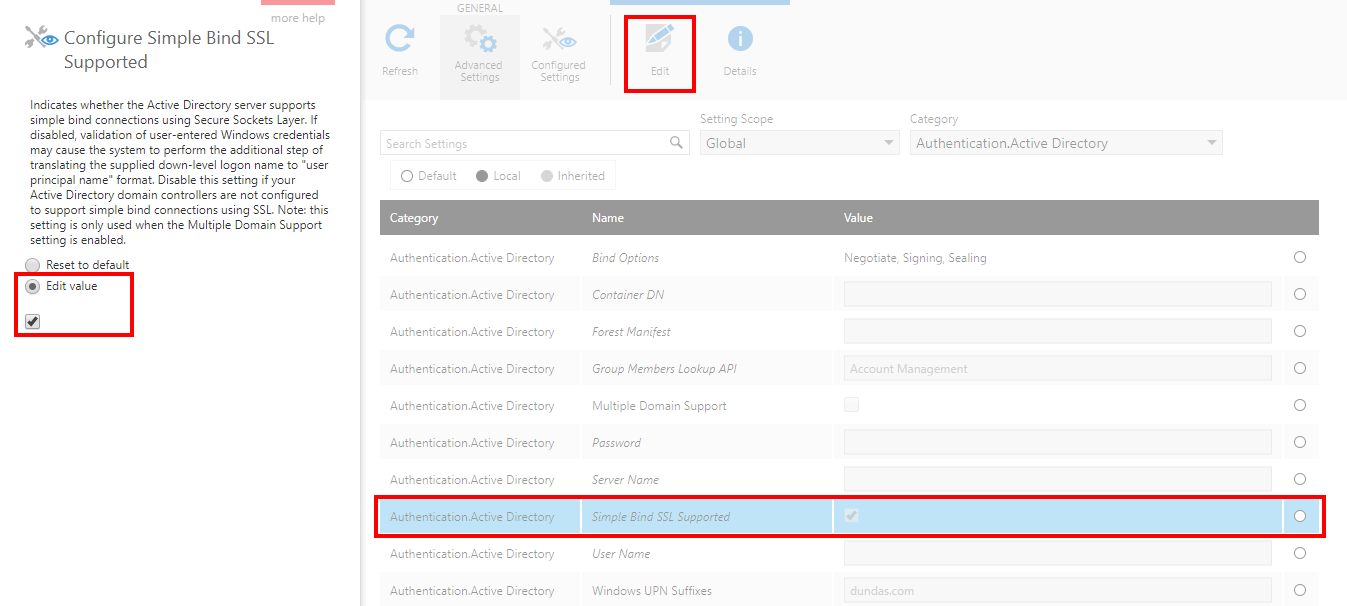

If your Active Directory domain controllers are not configured to support simple bind connections using Secure Sockets Layer (SSL), you have to disable the Simple Bind SSL Supported setting. This setting is an advanced setting.

Simple Bind SSL Supported setting
Simple Bind SSL Supported setting

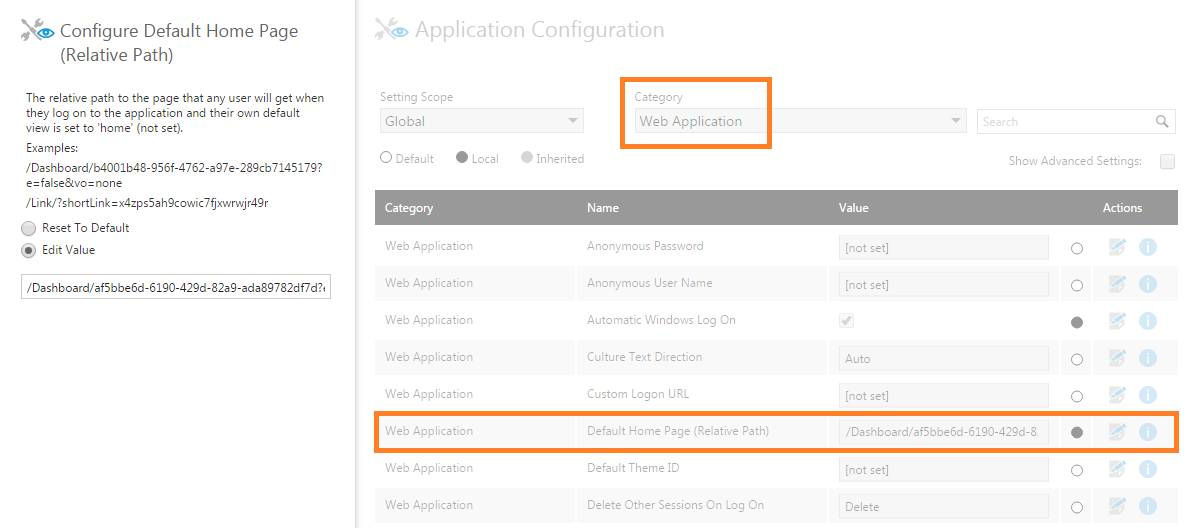

3.3. Default Home Page (Relative Path)

This configuration setting lets you set the page that appears when a user logs on to Dundas BI. It applies to all users application-wide as long as their Default View is set to Home (i.e., the user has not set a specific default view).

The setting value must be a relative URL like the one you get when you open a dashboard:

/Dashboard/abd7c93f-c9a6-4ecd-b7cf-7206d1977eae?e=false&vo=none

Or, it can be a relative URL like the one you get when you use the share link option:

/Link/?shortLink=yt1sca4pw9ir7ryke9ymew54th

Default Home Page setting
Default Home Page setting

You can also configure the related setting Always Use Custom Home Page to also direct users to the customized home page when they navigate back there after logging in.

3.4. Email settings

For installed versions of Dundas BI, email settings must be configured for certain features to work, including notifications and password reset from the logon screen. You may have configured these already when deploying.

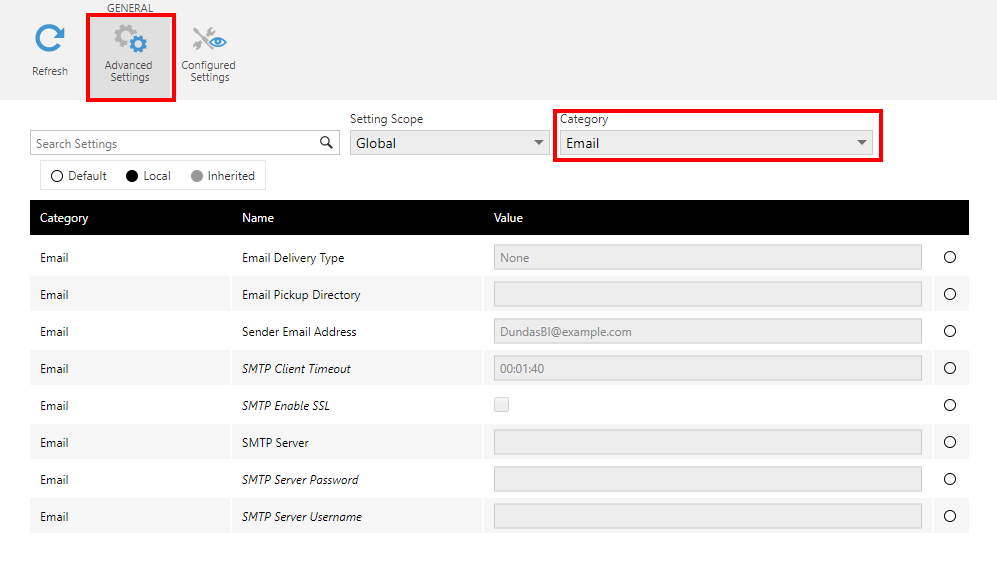

Set the Category dropdown to Email to filter to the available email settings. Note that the Advanced Settings toggle is necessary to see some settings.

Email settings
Email settings

The following table describes the various settings needed to enable sending emails. Dundas BI supports sending email via an SMTP server, or you can have the email messages delivered as files to a network share folder.

SettingDescriptionValues/Example
Email Delivery Type

The email delivery type to be used by the application:

  • SMTP: Use this in conjunction with the SMTP settings to send actual emails.
  • Drop Folder: Store email messages as files in a pickup directory. These will be *.eml files which you can sort by date.
  • Test: Simulates a working email service, but doesn't actually attempt to send anything. This option lets you test features such as scheduled notifications that require email, without having to worry that emails are being sent.
  • None: If you try to use features requiring email (such as account registration), it will result in an error.
  • None (default)
  • SMTP
  • Drop Folder
  • Test
Email Pickup Directory Email pickup directory location (applies when the email delivery type is Drop Folder). For example, set this to a network share folder.  \\server1\share
Sender Email Address The sender of the email messages sent by the email service.  sender@example.com
SMTP Enable SSL If enabled, SSL will be used when connecting to the SMTP server.  true/false (default)
SMTP Server The SMTP server (applies when the email delivery type is SMTP). An optional port may be specified here as well (e.g. "smtp.example.com:25"). smtp.example.com
SMTP Server Password The password for SMTP server authentication. Leave empty if authentication is not required.
SMTP Server Username The username for SMTP server authentication. Leave empty if authentication is not required.

There are a couple of ways to test the email settings after you've set them.

The first way is to expand the System Health administration section and click Test Email Settings. You'll be asked to enter an email address to receive a test email.

Test email settings
Test email settings

A second way to test is to create a note-based notification and then add a note to a data point in a visualization. Next, check your inbox or drop folder for the notification message. If you don't see the message, view the application logs for any email-related errors (e.g., search for "Email"). If you get errors when using the Drop Folder delivery type, it may be due to permissions on the network share folder.

It is also recommended to set the Maintainer Email Address setting in case of issues such as license expiry or job failure. (If unset, the built-in System Administrator account's email address will be sent these messages.)

3.5. Internal Application URL

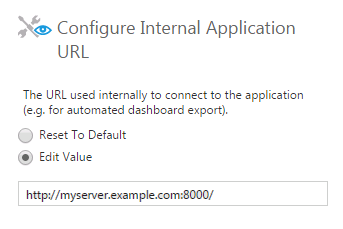

The Internal Application URL setting (if applicable) must be configured properly for scheduling-related features such as scheduled notifications to work properly. This URL is used by the Dundas BI Scheduler Service.

Internal Application URL
Internal Application URL

3.6. Log Filter

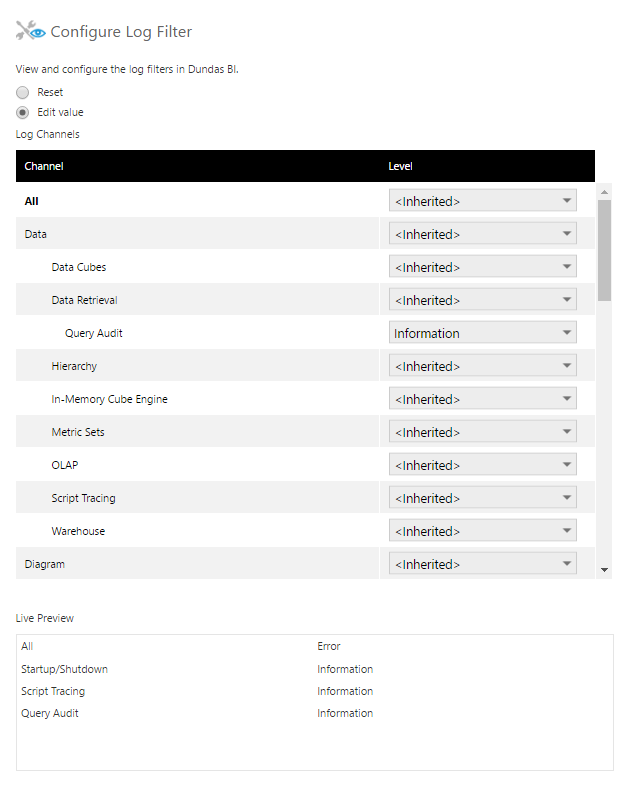

The Log Filter configuration setting lets you control the filtering of messages in the application logs. For each log channel (application area), you can independently set the level of logging you want (such as log only Critical messages or do Verbose logging). Use the scrollbar to see all of the available log channels.

If you change the level for a channel, you'll see it listed in the Live Preview section.

For example, if you set Query Audit to an Information level, every query sent to the database for data retrieval will be included in the log.

Log Filter setting
Log Filter setting

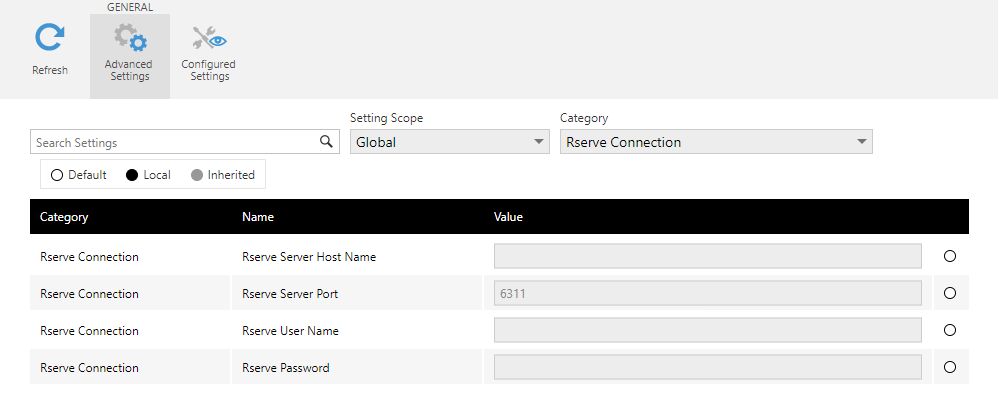

3.7. Rserve Connection

The Rserve Connection settings let you specify the details for connecting to an external R server. This is required in order to use the R language transforms such as R Data Generator.

If you have installed Rserve for Windows on your Dundas BI server for testing purposes, then the default Rserve Connection settings should suffice.

Rserve Connection settings
Rserve Connection settings

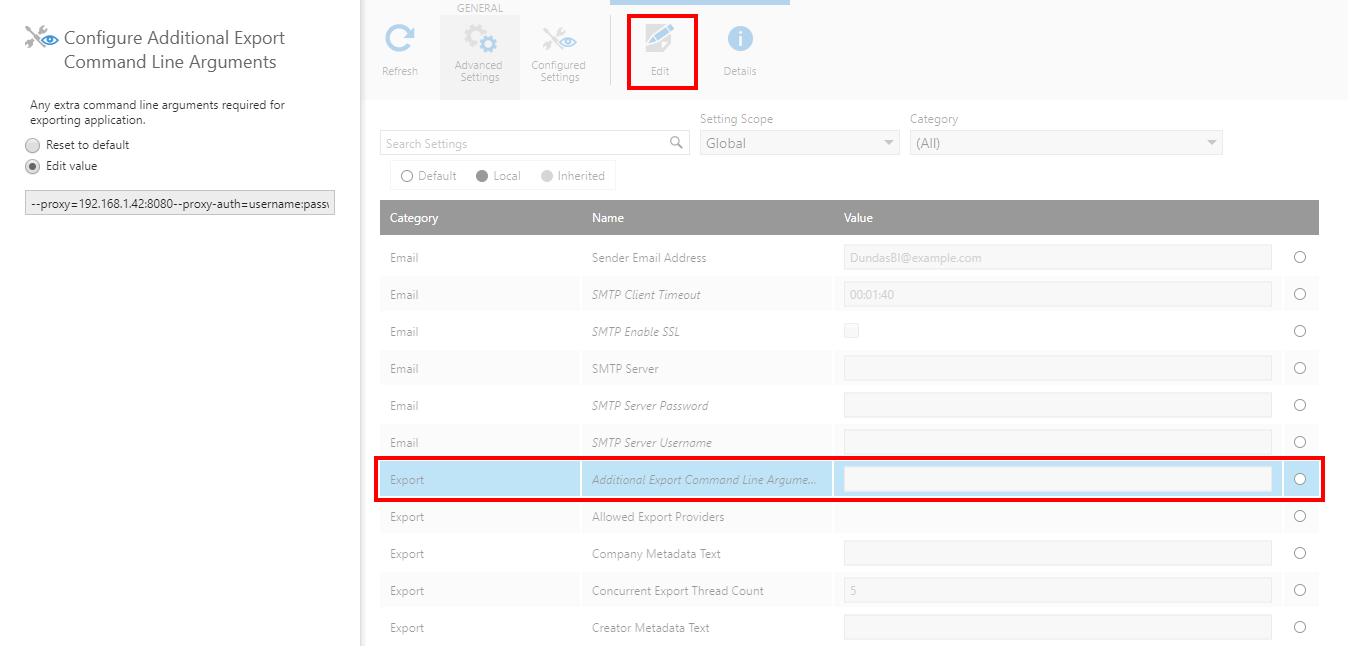

3.8. Additional Export Command Line Arguments

The exporting application in Dundas BI relies on the Chrome Embedded Framework (CEF), which sometimes requires additional arguments. The Additional Export Command Line Arguments setting lets you specify any extra command line arguments required for the exporting application.

Additional Export Command Line Arguments
Additional Export Command Line Arguments

The following table describes the various CEF arguments supported in Dundas BI.

ArgumentDescription
--proxy=address:port Specifies the proxy server to use (e.g. --proxy=192.168.1.42:8080).
--proxy-type=[http|socks5|none] Specifies the type of the proxy server. The default server type is set to http.
--proxy-auth Specifies the authentication information for the proxy server (e.g. --proxy-auth=username:password).
